Quick take — why this matters now
Comparative view: you want an inverter that stays fast and stable when the grid misbehaves. Real-world wake-up call: the Texas February 2021 winter storm exposed how fragile grid syncing can be and left millions without reliable supply. That’s why suppliers like energy storage inverter manufacturers and an ess inverter manufacturer matter — they build firmware and hardware that decide whether a site rides through a phase-angle jump or trips off.
Why PLL and phase-angle jumps are the choke points
Phase-Locked Loop (PLL) is the sensor brain for grid-tied inverters. When the grid angle jumps fast, PLLs can slip, mis-estimate phase, and cause improper current injection. Fault ride-through behavior and synchronization get tested hardest during big disturbances. Efficiency is great — until synchronization fails and everything shuts down.
Three strategies compared
Here’s a straight compare of common approaches used by installers and brands.
– Aggressive PLL tuning: fastest lock, smaller phase error. Pros: quick resync, higher uptime. Cons: sensitive to noise and harmonic distortion; can chase transient spikes.
– Robust, conservative PLL with phase prediction: slower lock, uses modeled inertia. Pros: stable under noisy grids, avoids false trips. Cons: can delay reconnection, reducing short-term efficiency.
– Hybrid adaptive approach: switches modes based on event detection and uses droop or virtual inertia during extreme jumps. Pros: balance of speed and stability. Cons: complexity in control firmware and test cases.
Operational teardown — where things actually break
Look under the hood: common failure modes are sampling aliasing, late detection of angle wrap, and oversensitive zero-crossing thresholds. In a practical production teardown, focus on {main_keyword} and {variation_keyword} and verify ADC sampling, PLL algorithm, and backup synchronization path. You’ll want clear logs showing angle error vs. time across a jump and the firmware state transitions.
What vendors get right — and where they slip
Good vendors hard-code fallback sync modes and test across many scenarios. They bench-test phase-angle jumps and harmonic loads before shipping. Less rigorous ones skip wide-range testing, relying on desktop models that don’t match messy grids. The gap shows up in field commissioning — you’ll see oscillation, delayed reconnects, or protective trips.
Common mistakes teams make
Don’t oversimplify. Too many projects optimize only for steady-state efficiency and treat synchronization as an edge case. Also, installers sometimes accept default PLL parameters from firmware without field-tuning — that’s asking for trouble. — Make commissioning include dynamic tests that emulate real grid events, not just steady ramps.
How to pick a system — what actually counts
Compare vendors on three pragmatic axes: documented sync behavior, firmware traceability, and field-proven performance. Look for vendors that publish test results for phase-angle jumps and list recovery times and misalignment tolerances. Ask for event logs from live sites — real data beats marketing every time.
Three golden rules for procurement and deployment
1) Metricize recovery: require vendor data on maximum phase-angle jump tolerated (degrees) and median reconnection time (ms). Those numbers tell you if an inverter is fit for your grid profile.
2) Demand deterministic failover: insist on a tested fallback sync path (e.g., bloc PLL + virtual inertia) and firmware state diagrams so you can audit behavior during fast events.
3) Field-validate with scenario tests: include at-commissioning tests that reproduce worst-case phase jumps and harmonics. Verify logs, not just LEDs — and pick partners who share real site records as proof.

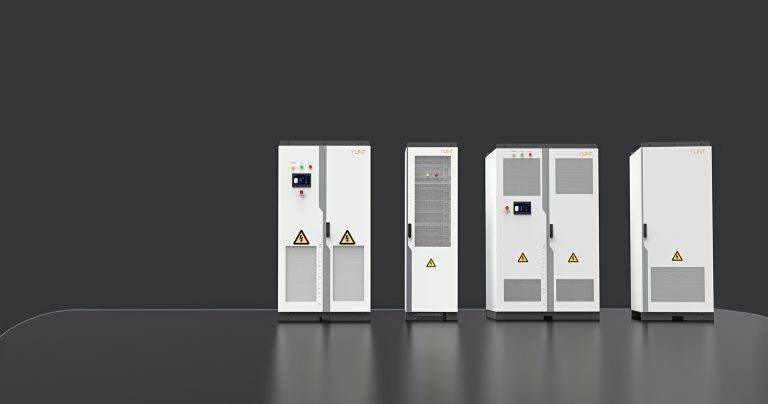

YUNT has been building those audit trails into their product suite, so you get both the sync resilience and the efficiency you need — practical design, traceable results. — Final thought: trust real logs over polished specs.
